Maxspect Jump Series DC Protein Skimmer (MJ-SK)
Unmatched Filtration Efficiency with Patented Dual Needle Wheel Technology

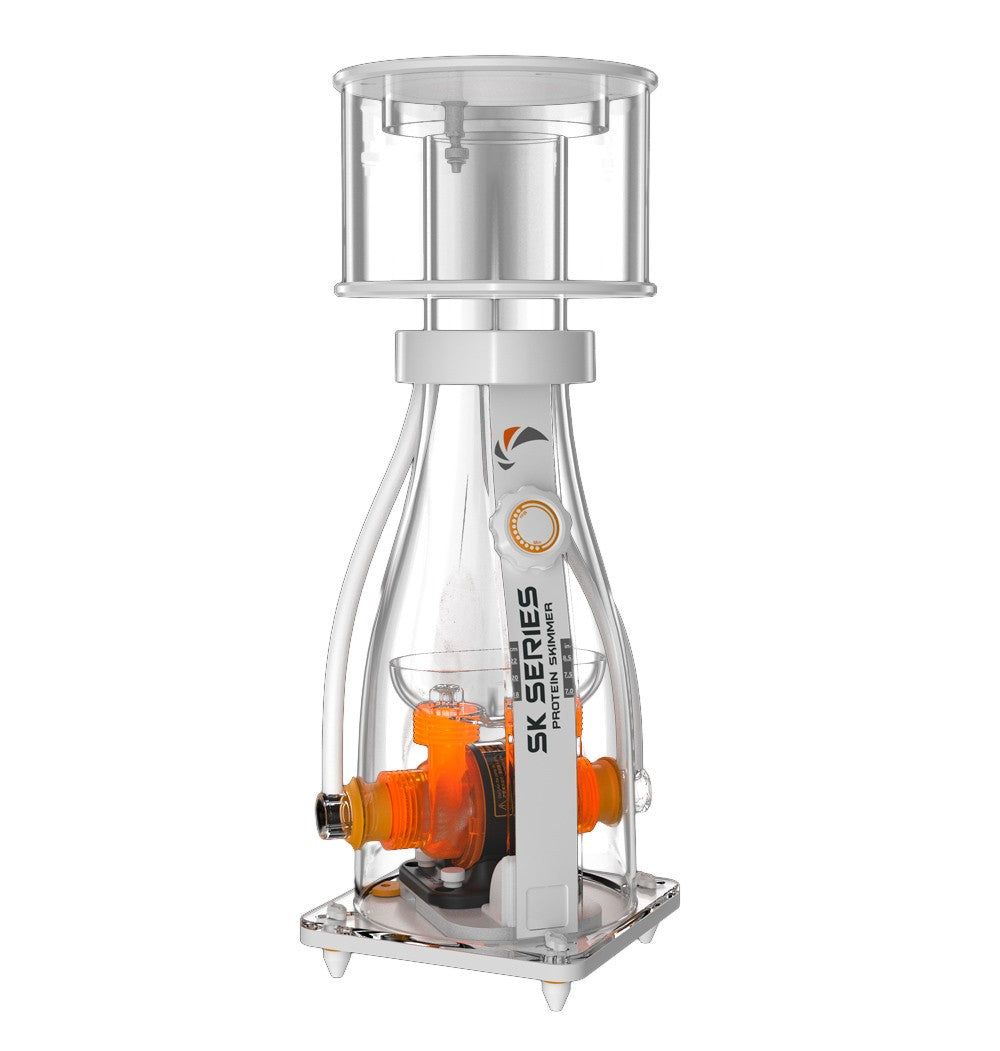

The Maxspect Jump MJ-SK Series Protein Skimmer sets a new standard for aquarium waste removal by combining high-end performance with smart, space-saving innovations. Built with a space-saving square footprint, this controllable DC skimmer features Maxspect’s patented Dual Intake and Dual Needle Wheel design. Powered by a single specialized pump block, it draws water from two sides and spins it through two needle wheels simultaneously, doubling air-shredding efficiency to generate an ultra-dense column of microbubbles for superior nutrient export.
Key Features & Design Innovations
- Patented Dual Intake & Needle Wheel: A single central pump unit operates two water intakes and two needle wheels at the same time. This maximizes air-to-water contact time while keeping energy consumption low.
- Ultra-Quiet Sine Wave Tech: Utilizing advanced electrical current alternation, the DC pump runs with near-silent operations, eliminating the loud vibrations common in old-school AC skimmers.
- Smart Anti-Overflow Protection: Equipped with an integrated float-level sensor inside the collection cup. If the skimmed waste reaches critical capacity, the smart controller automatically dials down or shuts off the pump to prevent messy sump overflows.
- Precision Front Control Dial: Features a prominent, accessible front-facing wheel to precisely adjust the internal water gate valve, allowing you to easily fine-tune the foam level without dipping your hands deep into the sump.
- Advanced Digital Controller: Offers immediate control over power increments, an automatic 10-minute Feed/Pause Mode, and a Startup Delay function to protect your aquarium from overflowing after power outages.
- Integrated Bubble Trap: A uniquely engineered baffle plates system near the outlet traps microbubbles, preventing them from escaping back into the return chamber and muddying your display tank’s clarity.
Technical Specifications Matrix
The Jump Skimmer series is engineered to match varying filtration capacities and bioload demands across both standard and Gen 2 configurations:

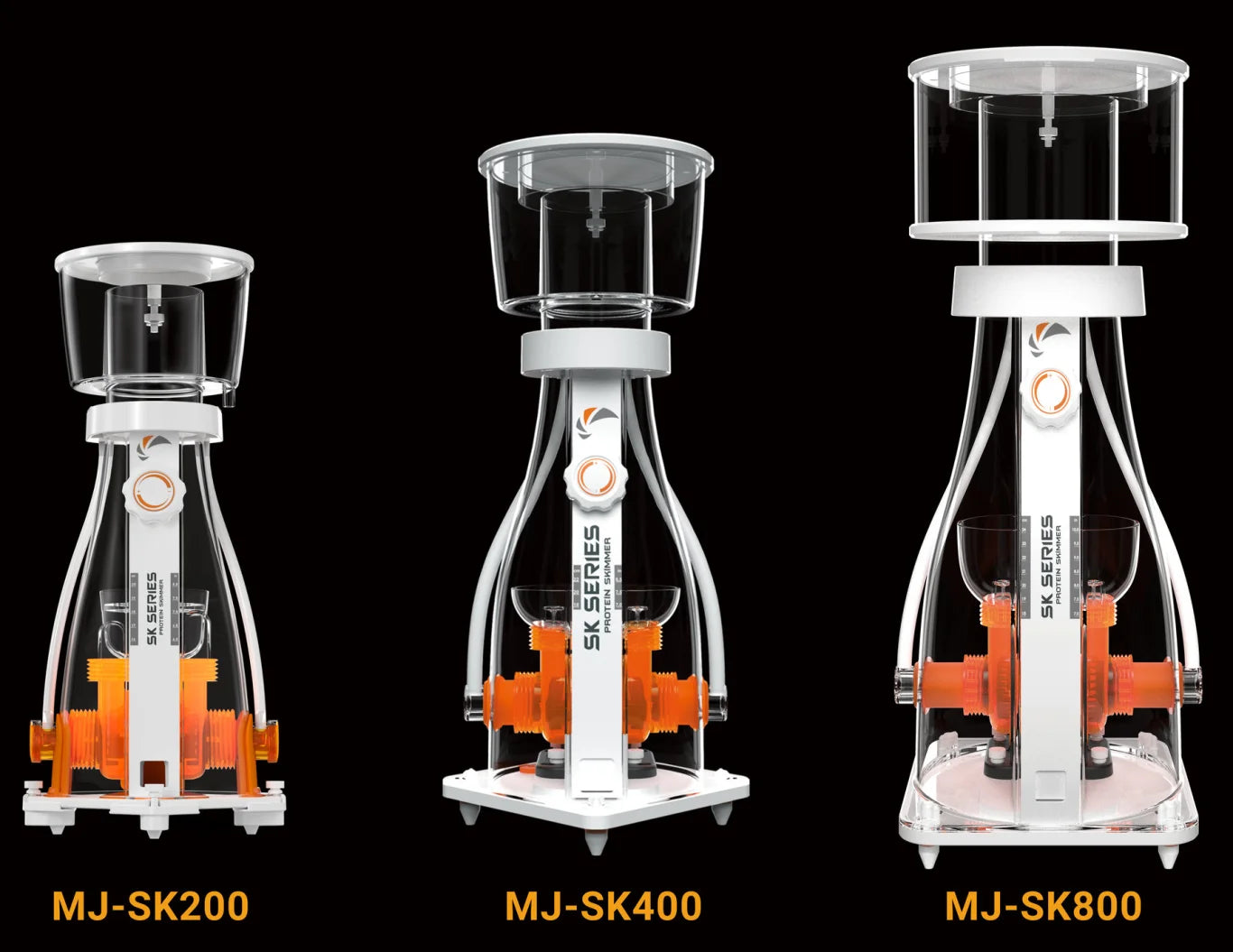

🔹 Standard Line (MJ-SK400 / SK800)
| Model | Wattage | Water Flow | Air Intake | Max Low Bioload Tank Size | Footprint (L x W x H) |
|---|---|---|---|---|---|
| MJ-SK400 | 25W | 1,200 LPH | 600 LPH | Up to 1,000 Liters (265 Gal) | 200 x 200 x 555 mm |
| MJ-SK800 | 50W | 1,800 LPH | 800 LPH | Up to 2,700 Liters (713 Gal) | 270 x 250 x 600 mm |

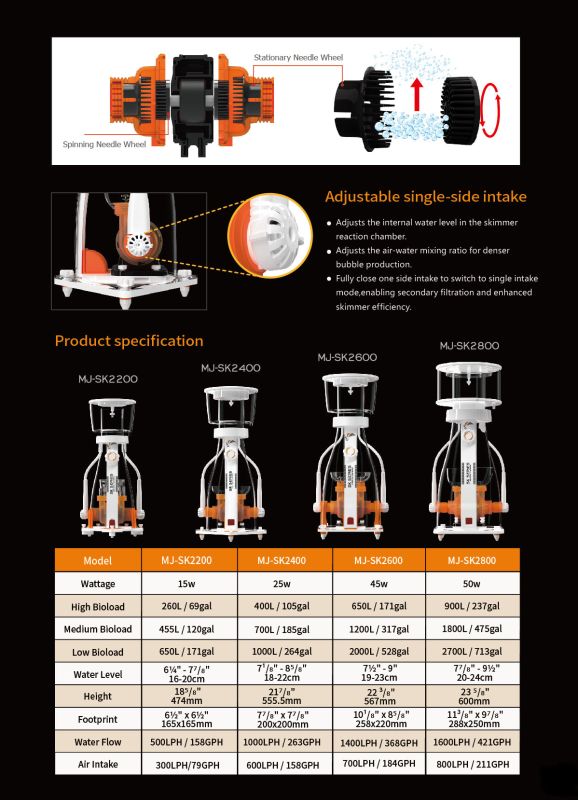

🔹 Generation 2 Smart-Control Models (MJ-SK2400 / SK2600 / SK2800)
Featuring enhanced spiral silencer chambers, smoother air-water ratios, and refined G2 controller integrations.
| Model | Wattage | Water Flow | Air Intake | Max Low Bioload Tank Size | Footprint (L x W x H) |
|---|---|---|---|---|---|
| MJ-SK2400 | 25W | 1,000 LPH | 600 LPH | Up to 1,000 Liters (264 Gal) | 207 x 203 x 555 mm |
| MJ-SK2600 | 45W | 1,400 LPH | 700 LPH | Up to 2,000 Liters (528 Gal) | 276 x 220 x 567 mm |
| MJ-SK2800 | 50W | 1,600 LPH | 800 LPH | Up to 2,700 Liters (713 Gal) | 290 x 250 x 600 mm |
Package Includes:
- 1x Maxspect Jump Series DC Protein Skimmer Body with Collection Cup
- 1x Central Dual-Intake DC Pump Assembly
- 1x Smart Digital Control Module
- 1x Integrated Floating Level Sensor Lid
- 1x Air Silencer and Airline Tubing
-
Power Supply Unit and Adapter Cable
,
- User Manual
